How It Works

Sample Files

All Architectural Designs are in the unified standard.

PDF Sets
Imperial / Inch / Feet:
SET 1: 1/8 inch = 1 feet - Floor PlansElevations & Sections
SET 2: 1/4 inch = 1 feet - Floor PlansElevations & Sections

Metric:
SET 3: 1:100 - Floor PlansElevations & Sections
SET 4: 1:50 - Floor PlansElevations & Sections


CAD Sets
SET 1: Imperial / Inch / Feet UNITS
SET 2: Metric UNITS

CAD Set (AutoCAD / DWG, ArchiCad / PLA) samples, for professional use, are available on request, [email protected]


Please contact us if you have any questions.

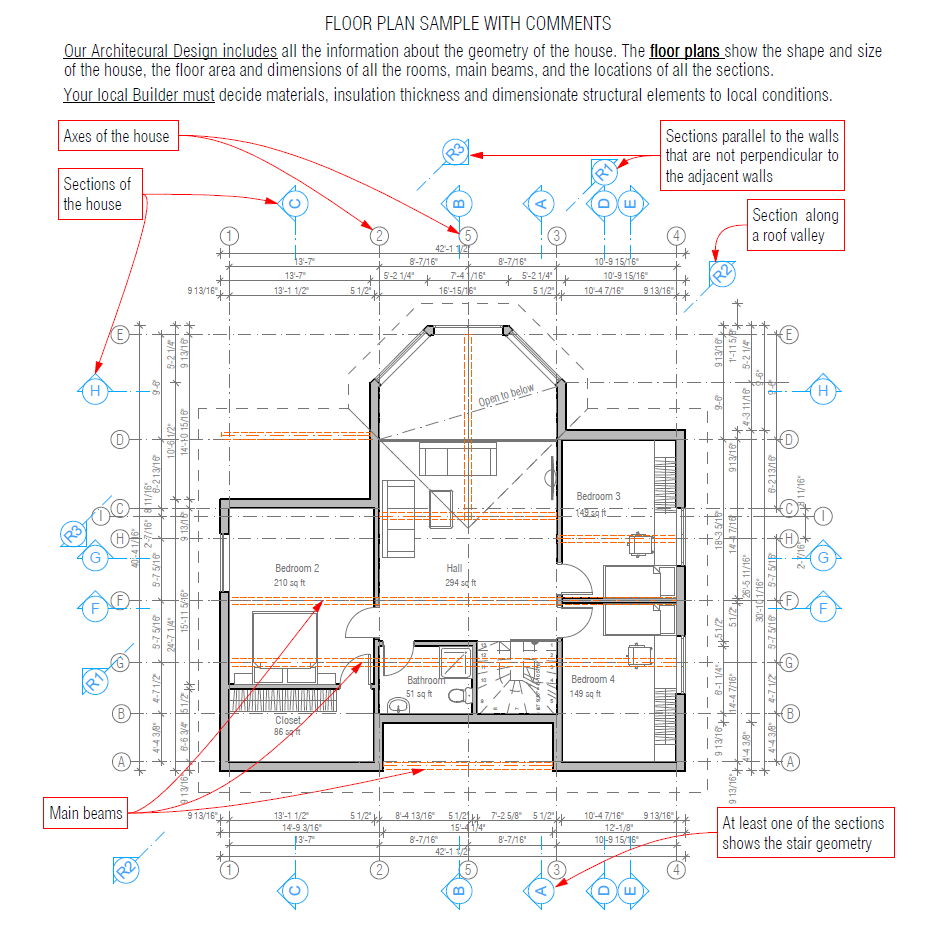

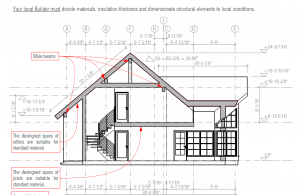

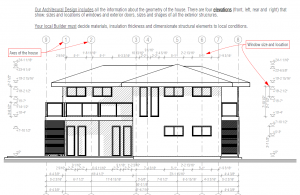

Sample Files with comments.



Imperial / Inch / Feet:



Metric:

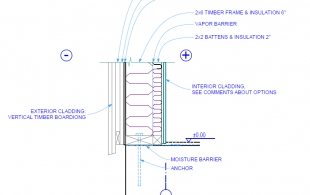

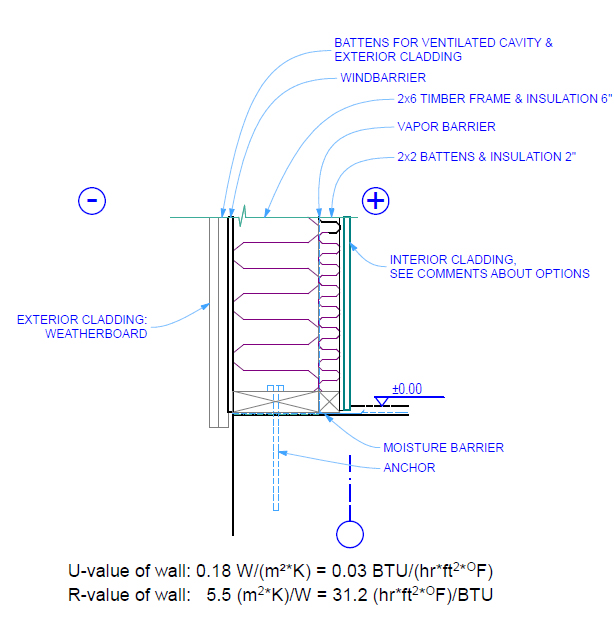

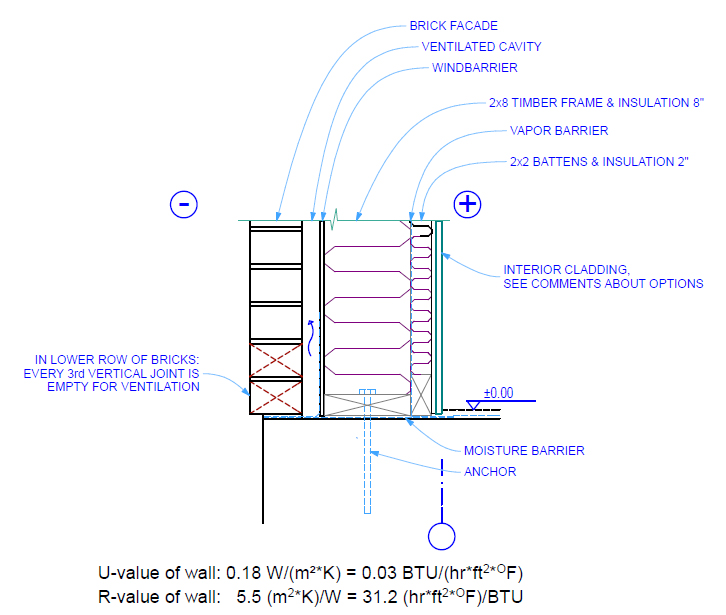

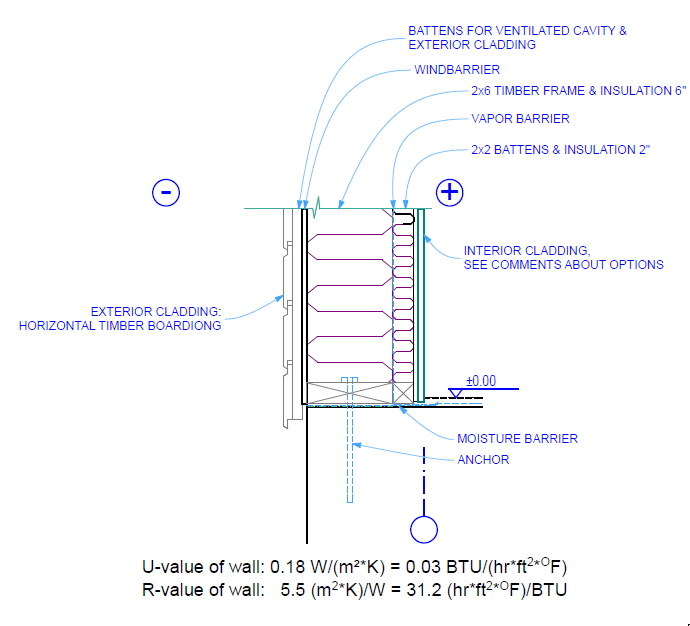

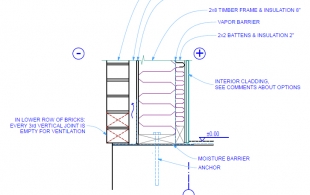

Wall Sections (samples)

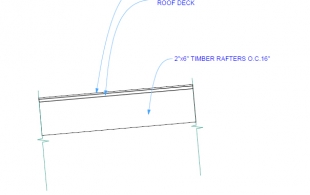

Roof Sections (samples)
