Duplex House Plan CH502D

duplex house 001 house plan ch502.jpgduplex house 002 house plan ch502jpg.jpgduplex house 04 house plan ch502.jpgduplex house 10 house plan CH502.jpgduplex house 11 house plan CH502.jpgduplex house 12 house plan CH502.jpg
Net area: 3819 sq ft
Gross area: 4441 sq ft
Bedrooms: 2
Bathrooms: 2
Floors: 3
Height: 30′ 12″
Width: 57′ 0″
Depth: 28′ 8″
Cost to Build: from $ 310000

Questions

Contact us: [email protected]

Architectural Design PDF & CAD  SET $ 590
All designs in inch/feet and metric units.


All our packages include CAD files and your local builder can modify the design based on local conditions.


Order the Architectural Design before you contact your local builder
Deliver the ordered design to several builders to get the best construction price.
Free Exchanges - Get a new design for free if you change your mind after the purchase.

It is copyright infringement to redraw our plans based on the images on the internet.
The net floor area is the total sum of all interior room areas.
The gross floor area is measured to the external face of the external walls.

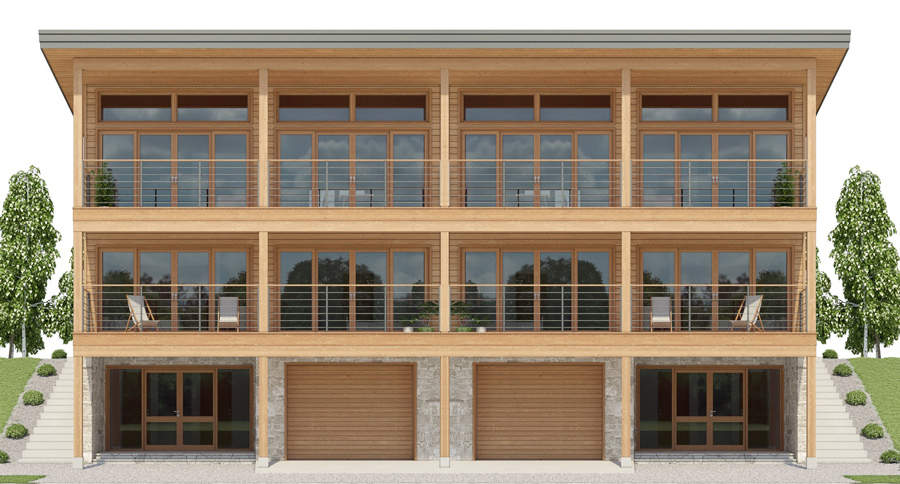

Sloping lot duplex house plan, both units with two bedrooms, three floors.
