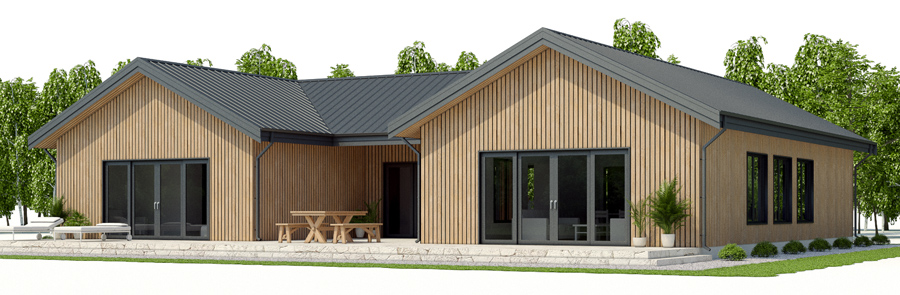

House Plan CH486

small houses 001 house plan ch486.jpgsmall houses 002 house plan ch486.jpgsmall houses 03 house plan ch486.jpgsmall houses 04 house plan ch486.jpgsmall houses 05 house plan ch486.jpgsmall houses 06 house plan ch486.jpgsmall houses 07 house plan ch486.jpgsmall houses 10 house plan ch486.jpgsmall houses 20 house plan CH486 V2.jpgsmall houses 25 house plan CH486 V2.jpgsmall houses 38 ALl ORDERS.jpgsmall houses 45 house plan CH486 V4.jpgsmall houses 50 CH486 V6.jpgsmall houses 51 HOUSE PLAN CH486 V6 elevations.jpgsmall houses 52 HOUSE PLAN CH486 V7.jpgsmall houses 54 HOUSE PLAN CH486 V8.jpgsmall houses 61 modifications.jpg


Get a new Architectural Design for free if you change your mind after the purchase.

[email protected]

Net area: 1938 sq ft
Gross area: 2153 sq ft
Bedrooms: 3
Bathrooms: 2
Floors: 1
Height: 15′ 8″
Width: 60′ 4″
Depth: 47′ 7″
Cost to Build: from $ 155000


Contact us: [email protected]

All designs in inch/feet and metric units.

All our packages include CAD files and your local builder can modify the design based on local conditions.

Order the Architectural Design before you contact your local builder
Deliver the ordered design to several builders to get the best construction price.

It is copyright infringement to redraw our plans based on the images on the internet.
The net floor area is the total sum of all interior room areas.
The gross floor area is measured to the external face of the external walls.

Three bedrooms, two living areas, open floor plan, vaulted ceiling.
