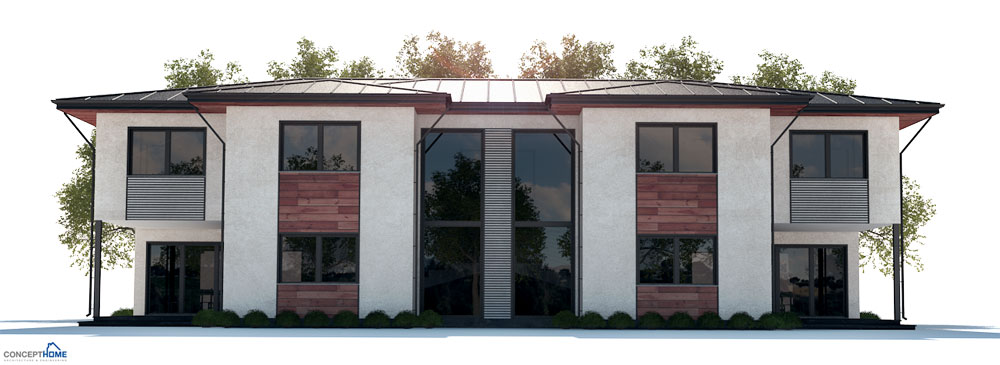

Duplex House Plan CH287

duplex house 001 house plan ch287.jpgduplex house 002 house plan ch287.jpgduplex house 03 house plan ch287.jpgduplex house 04 house plan ch287.jpgduplex house 05 house plan ch287.jpgduplex house 06 house plan ch287.jpgduplex house 07 house plan ch287.jpgduplex house 10 house plan ch287.pngduplex house 11 house plan ch287.png


Get a new Architectural Design for free if you change your mind after the purchase.

[email protected]

Net area: 3507 sq ft
Gross area: 4120 sq ft
Bedrooms: 3
Bathrooms: 3
Floors: 2
Height: 22′ 8″
Width: 68′ 7″
Depth: 41′ 4″
Cost to Build: from $ 290 000


Contact us: [email protected]

All designs in inch/feet and metric units.

All our packages include CAD files and your local builder can modify the design based on local conditions.

Order the Architectural Design before you contact your local builder
Deliver the ordered design to several builders to get the best construction price.

It is copyright infringement to redraw our plans based on the images on the internet.
The net floor area is the total sum of all interior room areas.
The gross floor area is measured to the external face of the external walls.

Duplex House Plan, both units with three bedrooms, covered terrace.
